Gear Hobbing Machine
Versatility: Processes Spur, Helical, Worm gears, and Spline shafts.
Capacity: Max. Module 8-10mm; Max. Diameter 500-800mm.
Stability: High structural rigidity for heavy-duty industrial use.
Automation: Automatic shut-off and lubrication for enhanced safety.
Control: Modern PLC/CNC variants available for high-speed precision.
Table of Contents

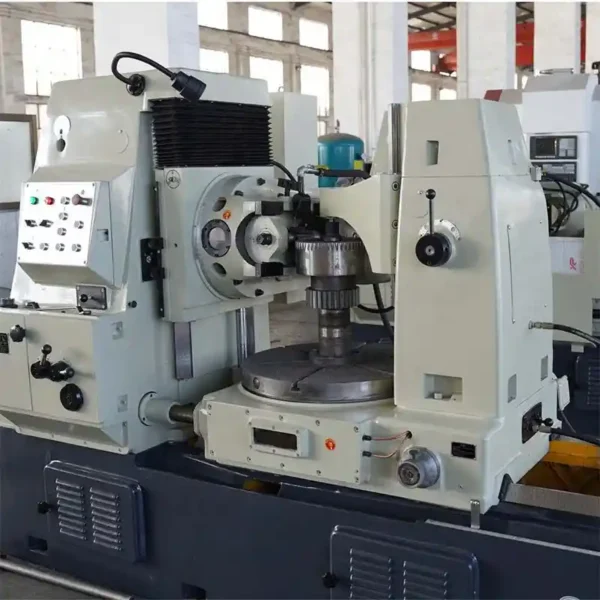

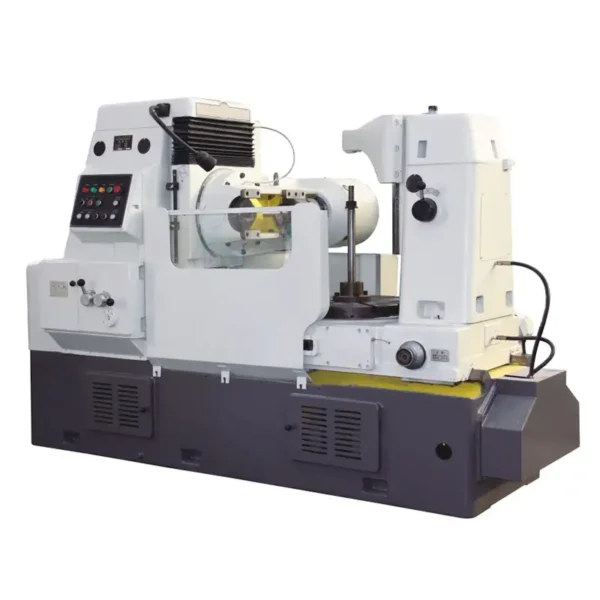

Gear Hobbing Machine: High-Precision Industrial Gear Manufacturing Solution
The Gear Hobbing Machine is a heavy-duty, high-precision machine tool designed for the efficient production of cylindrical spur gears, helical gears, worm gears, and spline shafts. Built for industrial-grade reliability, it is widely used in automotive, aerospace, heavy machinery, and general mechanical manufacturing industries. This machine offers exceptional structural rigidity, stable performance, and excellent repeatability, making it ideal for both batch production and small-batch, high-precision manufacturing. All machining processes comply with international gear manufacturing standards, such as ISO 21771-1, to ensure consistent precision and reliable results for industrial applications.
Main Performance and Structural Characteristics
- Rigid & Stable Structure: The machine tool is mounted on a heavy-duty bed with a large column, with the worktable moving both horizontally and radially for high-precision positioning.
- Versatile Machining Capability: Supports both up and down milling operations, and features a manual hob shifting device for flexible gear machining.
- Vibration-Free Axial Movement: A pressure balance oil cylinder eliminates screw-nut backlash, effectively suppressing vibration caused by cutting forces during the tool post’s axial movement.

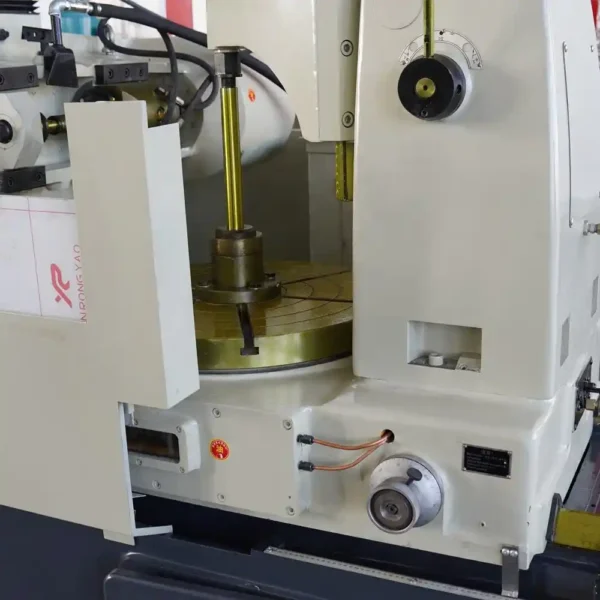

- High-Efficiency Hydraulic Worktable: The worktable is hydraulically driven, with a 50mm rapid approach/exit mechanism to significantly reduce non-cutting auxiliary time.
- Adjustable Rear Column Support: A manually controlled hydraulic three-position valve allows the outer support of the rear column to lock securely at any desired height.
- Flexible Speed & Feed Adjustment: Spindle speed and axial feed rate are controlled via a combination of manual shifting and exchange gears. Both split and differential gear transmission chains use exchange gears for versatile adjustments.
- Durable Indexing Worm Gear: The high-precision indexing worm gear pair is made of bronze alloy, offering excellent wear resistance and long service life.
- Precision Ground Transmission Gears: High-precision ground gears ensure accurate power transmission with minimal noise during operation.
- Premium Rolling Bearings: Key components in the main shaft and transmission chain use high-precision rolling bearings for smooth, reliable performance.

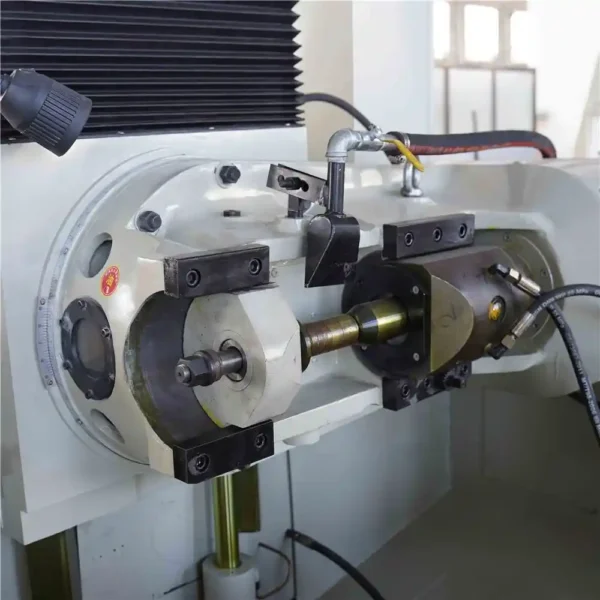

- Accurate Manual Tool Post Rotation: The tool post’s manual angle adjustment uses a self-locking worm-and-worm gear structure for precise, repeatable readings.
- Controllable Cooling System: A dedicated cooling pump delivers coolant to the tool post via a delivery pipe, with a nozzle-mounted switch to easily adjust coolant flow rate.
- Semi-Sealed Protection & Chip Management: The semi-sealed machine enclosure prevents coolant leakage, while iron filings are collected in a dedicated box for easy, regular removal.
Control System & Customization Options
We understand that industrial applications demand flexibility, which is why our gear hobbing machines support multiple industry-leading control systems to meet diverse production needs, ensuring both high precision and operational reliability:
- Siemens CNC system: Delivers high-precision motion control and robust performance, ideal for complex, high-volume gear manufacturing tasks.
- KND CNC system: Provides a reliable, cost-effective solution with user-friendly operation and stable performance, perfectly suited for small-to-medium production lines.
- GSK CNC system: A trusted domestic control solution known for its stability, easy maintenance, and comprehensive after-sales support, catering to a wide range of industrial applications.
We also offer full customization options for spindle sizes, worktable dimensions, and auxiliary configurations to match your specific production requirements.
Technical Specifications
| Model | Y3150 | Y3180 |
|---|---|---|
| Max.workpiece dia.(mm) | 500 | 550/800 |
| Max.module(mm) | 8 | 10 |
| Max.worktable speed(rpm) | 7.8 | 5.3 |
| Spindle speed(steps)(rpm) | 40-250(9) | 40-200(8) |
| Distance between hob axis and worktable surface(mm) | 235-535 | 235-585 |
| Min.center distance between tool and worktable(mm) | 30 | 50 |
| Distance from tailstock end face to table surface(mm) | 380-630 | 400-600 |
| Max.hob dia.Xlength(mm) | 160*160 | 180*180 |
| Max.hob head swiveling angle | ±240° | ±240° |
| Total power(kw) | 6.45 | 8.5 |
| Dimension(cm) | 244x136x180 | 275x149x187 |
| N.W./G.W.(kg) | 4500/5500 | 5500/6500 |
Applications
The Gear Hobbing Machine is widely used in:
- Automotive gear production (spur gears, helical gears for transmissions)
- Mechanical gear manufacturing for industrial equipment
- Heavy machinery gear processing
- Precision part shaping and prototyping for aerospace and defense industries
For complementary gear processing solutions, you can also explore our CNC Vertical Gear Shaper, which works seamlessly with hobbing machines to provide a complete gear manufacturing workflow.
After-Sales & Support
As a professional industrial machinery manufacturer, we provide comprehensive support for all our equipment:
- Customization: We offer OEM/ODM services to tailor the machine to your specific production needs.
- Installation & Training: Our engineers provide on-site installation, commissioning, and operator training.
- Warranty: 12-month warranty on all parts, with lifetime technical support and spare parts supply.
- Technical Support: We provide ongoing technical assistance and troubleshooting for all our equipment.
Frequently Asked Questions about Gear Hobbing Machine
Q1: What types of gears can the Y3150/Y3180 Gear Hobbing Machine process?
A: These machines are versatile and can process cylindrical spur gears, helical gears, worm gears, and short spline shafts, making them ideal for diverse industrial applications.
Q2: What is the maximum machining capacity of this Gear Hobbing Machine?
A: The Y3150 model supports a maximum worktable diameter of up to 500mm and a maximum module of 8mm, while the Y3180 is optimized for diameters up to 800mm.
Q3: Does the machine support CNC or PLC control?
A: Yes, our modern gear hobbing machines are typically equipped with PLC control systems. High-end variants also feature full CNC (Computer Numerical Control) capabilities for enhanced automation and precision.
Q4: Is the Gear Hobbing Machine suitable for mass production?
A: Absolutely. These machines are engineered for high structural rigidity and stability, making them perfect for batch production, serial-batch manufacturing, and even single-piece production.
Q5: Can you provide customized configurations?
A: Yes. We offer full customization of control systems, spindle sizes, worktable dimensions, and auxiliary features to meet your unique production requirements.
